Product Overview
Cheap Bluetooth master slave HC-05 upgrade transceiver dual BQB module for thermal printer
FSC-BT826 is complianty bluetooth module HC-05, it's a fully integrated Bluetooth module that complies with Bluetooth 4.0 dual mode protocols(BR/EDR/LE). It integrates a baseband controller and M3 CPU in a small package(Integrated PCB antenna),so that the designers can have better flexibility for the product shapes.
FSC-BT826 Main Points:

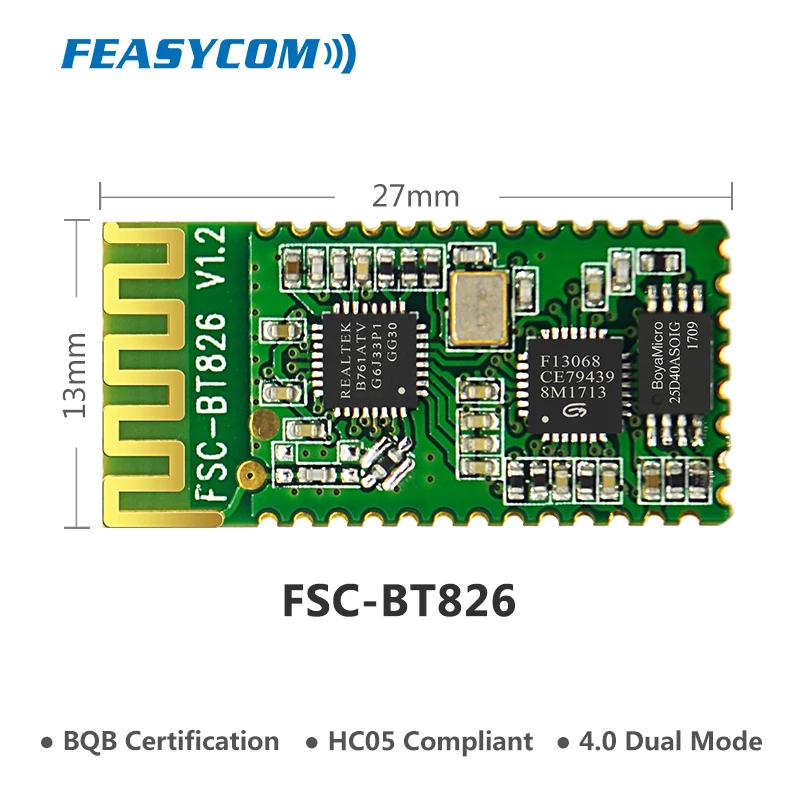

1. BQB Certification,product size: 27*13*2mm
2. SPP+BLE+HID support, hardware & firmware customization accept
3. Compliant with HC-05,v4.0 bluetooth dual mode module
4.With built-in antenna, Coverage up to 15m(50ft)
5.Max Transmit Power: 5.5 dBm
Feature
* Fully qualified Bluetooth 4.0/3.0/2.1/2.0/1.2/1.1
* Profiles support: SPP, HID, GATT, etc.
* Postage stamp sized: 13*26.9 *2mm (similar Bluetooth module HC-05)
* Class 1.5 support(high output power)
* The default UART Baud rate is 115.2Kbps and can support from 1200bps up to 921Kbps
* UART, I2C,PCM / I2S, SPI, up to 14 IOs.
* Support the OTA upgrade.
* BQB & MFI Certification
* RoHS compliant.
Application
Health & Medical devices
Wireless POS
Bluetooth Printers
Barcode scanners
Measurement and monitoring systems
Industrial sensors and controls
Feasycom FSC-BT826 Datasheet:
General Specification
Chipset
Realtek 8761
Product
FSC-BT826
Dimension
13mm x 26.9mm x 2mm
Bluetooth Specification
Bluetooth V4.0 (Dual Mode)
Power Supply
3.3 Volt DC
Output Power
5.5 dBm
Sensitivity
-82dBm at 0.1%BER
Frequency Band
2.402GHz -2.480GHz ISM band
Modulation
FHSS,GFSK,DPSK,DQPSK
Baseband Crystal OSC
40MHz
Hopping & channels
1600hops/sec, 1MHz channel space,79 Channels(BT 4.0 to 2MHz channel space)
RF Input Impedance
50 ohms
Antenna
Integrated chip antenna
Interface
Data: UART, I2C, PCM / I2S
Profile
SPP, GATT(BLE Standard)
MFI,Airsync,ANCS, iBeacon, MAP(optional),OTA(optional)
Temperature
-20ºC to +70 ºC
Humidity
10%~95% Non-Condensing
Environmental
RoHS Compliant
FSC-BT826 Block Diagram:
<
Product Dimensions
Height: 1.1 Inches
Width: 0.5 Inches
Depth: 0.1 Inches
Weight: 0.003 KG
